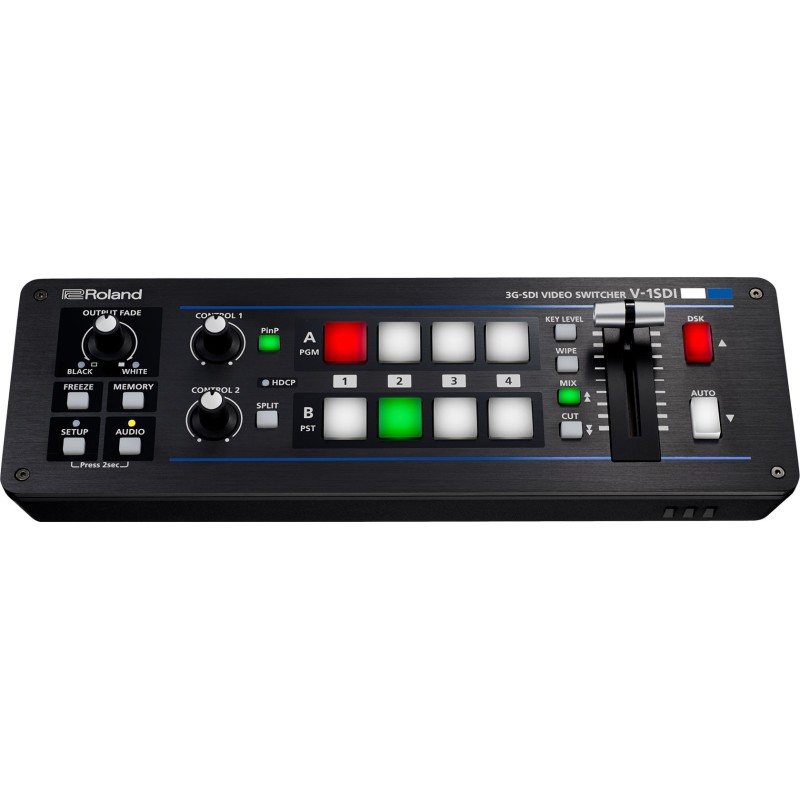

Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
Easy to operate with hardware controls
Compact size
Supports up to Full HD 1080p
3 x 3G-SDI and 2 x HDMI*1 inputs
2 x 3G-SDI and 1 x HDMI*1 output
Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
Quad input multi-viewer with source labelling and audio metering
Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
Full 14 channel audio mixer included
Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5]
*1 HDCP Compliant
*2 Built-in EDID Emulator
*3 The Still-image data is deleted once the power is turned off.
Inputs and Outputs
Inputs
The V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling.
This makes the V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources.Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4’s scaler supporting a wider range of video and VESA resolutions. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. HDCP is supported* for input of copy protected content from devices such as Blu-ray disc players.
Outputs
The V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs.
Quad Input Multi-viewer
The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. It also includes audio metering for all input sources and the main output.
Composition Effects
The V-1SDI includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.
The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed. The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green).
Audio Mixing
Included is a 14 channel digital audio mixer.
The V-1SDI can mix 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input and a mic level input.
Every audio input is equipped with a DELAY function* to synchronize the video and the audio as well as EQ for adjustment of sound quality. Audio output is equipped with a MASTERING function to improve the sound of the final audio mix.
Audio follow function enables the audio to transition along with the video.
The final audio mix is both embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.
Remote Control
Remote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable.
The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings.
V-1SDI RCS Ver.1.5 supports sending a Still Image to the V-1SDI.*
The STILL IMAGE EDITOR allows both images and text to be edited making it ideal for easy, on-demand creation of subtitles and graphics.
For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls.
