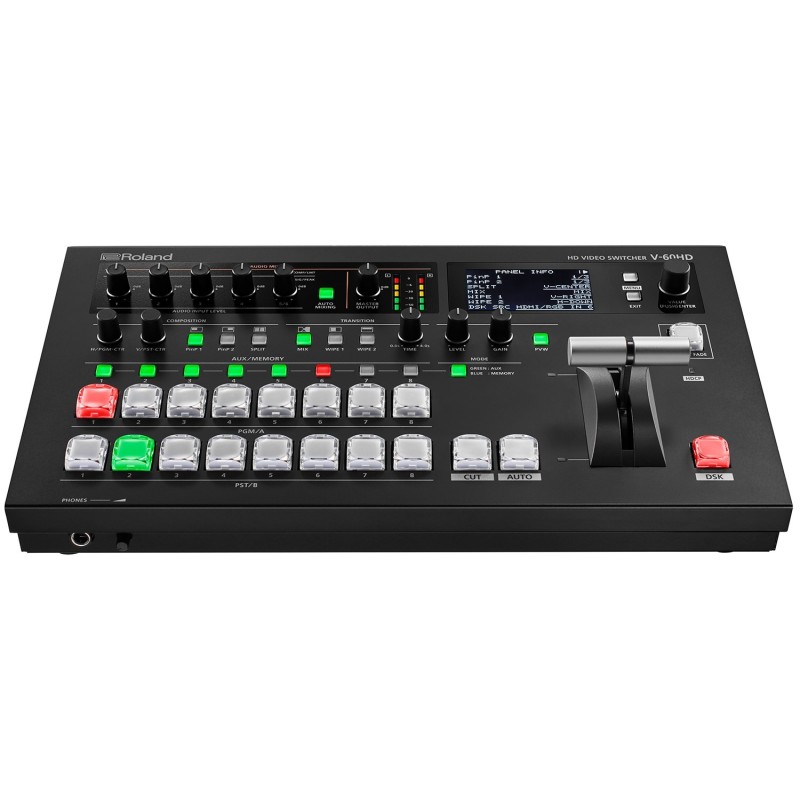

Live event and production continues to grow and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus makes the V-60HD ideal for a variety of live event and production applications.
VIDEO
Video Processing :
4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors :
SDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI IN 5--6: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
RGB/COMPONENT IN 6: HD DB-15 type x 1
* INPUT 6: HDMI or RGB/COMPONENT selected.
* Multi-format Supported
Output Connectors :
SDI OUT 1--2: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
* HDCP Supported
Input Format :
SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
HDMI IN 5:
HDMI/RGB/COMPONENT IN 6:
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
Still Image :
Windows(R) Bitmap File (.bmp)
* Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
* It can be stored up to 2 files in the internal memory.
Output Format :
SDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:
720/59.94p, 720/50p (SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i)
1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p)
* The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
HDMI MULTI-VIEW:
1080/59.94p, 1080/50p
Video Effects :
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output
AUDIO
Audio Processing :
Sampling rate : 24 bits/48 kHz
Audio Format :
SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors
Digital: SDI IN 1--4: BNC tyep x 4
HDMI IN 5--6 (HDMI Type A 19 pins) x 2
Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power
AUDIO IN 5--6: RCA phono type
Phantom Power :
DC 48 V (unloaded maximum), 10 mA (maximum load)
* Current value per channel
Output Connectors :
Digital: SDI OUT 1--2: BNC type x 2
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
Analog: AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type
Input Level :
AUDIO IN 1--4: -60--+4 dBu (Maximum: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum: +8 dBu)
Input :
AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN 0--23 dB), 5 k ohms (HEAD AMP GAIN 24--+64 dBu)
AUDIO IN 5--6: 15 k ohms
Output Level :
AUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms
Audio Effects :
Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter
OTHERS
Others Connector :
USB: USB A type (for USB memory)
TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8)
RS-232: DB-9 type (Male) *for Remote Control
LAN: RJ45 100BASE-TX *for Remote Control
Other Functions :
MEMORY (8 types)
Panel lock function
EDID Emulator
EDID Emulator
Display :
Graphic LCD: 128 x 64 dots
Power Supply :
AC Adaptor
Current Draw
3.1 A
Power Consumption :
37.0 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
SIZE AND WEIGHT
Dimensions
356 (W) x 221 (D) x 96 (H) mm
14-1/16 (W) x 8-3/4 (D) x 3-13/16 (H) inches
Weight (excluding AC adaptor)
3.0 kg
6 lbs 10 oz
ACCESSORIES
Owner's Manual
AC adaptor
Power cord
* 0 dBu=0.775 Vrms
