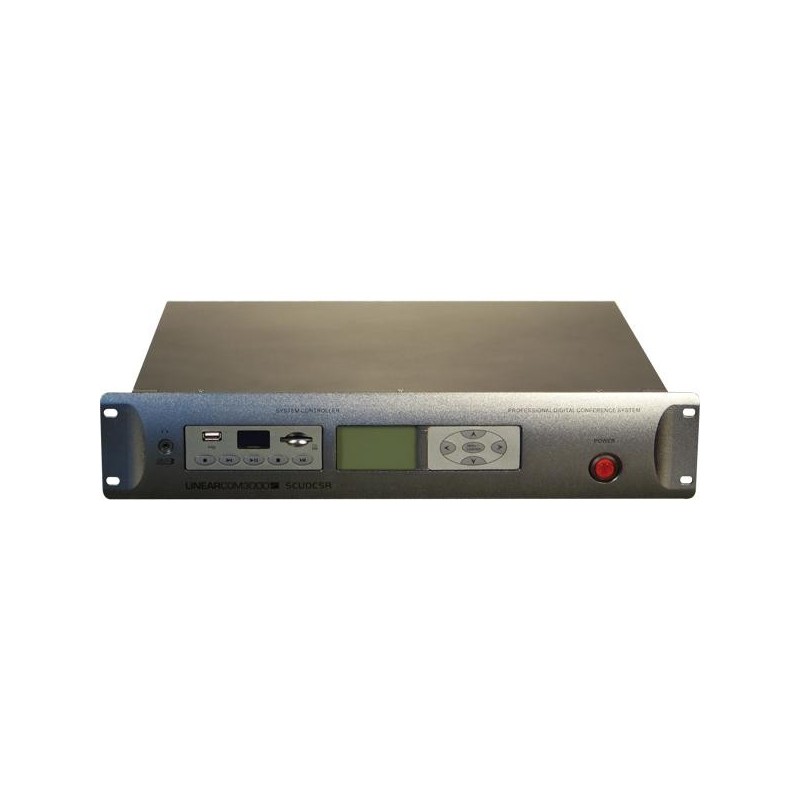

OPTION OF RECORDING FOR MAIN STATION

public price :
2 800,00 € tax excl.

This controller of system manages all the functions of conference thanks to the browsing in the keyboard and in the display LCD 8" screen; the model presented here is the version with option of recording on SDcard and he allows a direct digital recording, without digital or analog decoding (option to be planned with order of the LC3. SCUDCSR main station).

Reference : LC3.SCUDCSR

Availability:

Sign up

Professionnals, please contact us

Supply: 100-240V / 50-60Hz
Consumption: according to the number of connected items - Max 420W
Audio inputs: 2 RCA - 1 Jack 6,35mm - 1 XLR
Audio outputs: 2 RCA - 1 XLR
Impedance of output: 47KOhms
Audio frequency response: 20Hz-20kHz
SNR: 102dBDynamic range: 106dB
Connectors: RJ45
Video output level: 4 RCA
Impedance of outputs: 75KOhms
Playback: RS232x2 (PC + video)
Video bandwidth: 30MHz
Net weight: 8kg
Dimensions: (19 " w2U) 483x90x350mm
