Home>Lighting>Dimmers packs>Digital Dimmers>12x6kW WALL RACK DIMMER

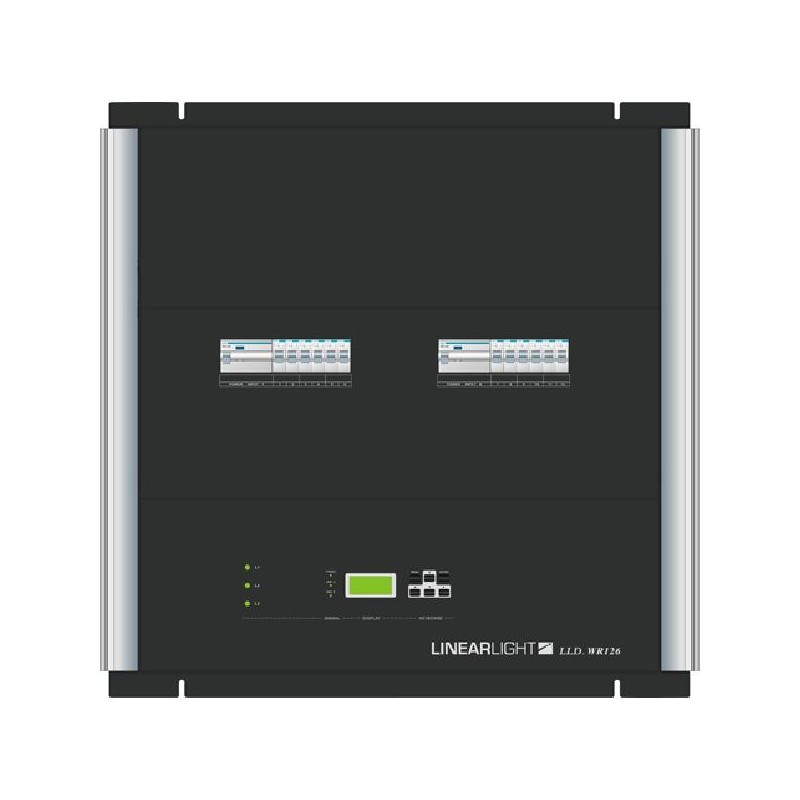

12x6kW WALL RACK DIMMER

public price :
3 350,00 € tax excl.

The WR126 is equipped with 12x6kW channels. It has a 30mA RCD breaker for 6 16A/30A breakers. Users can select the curve and the working mode (Normal, fix and switch) Each channel can be dimmed locally. Optional NF/CEBEC sockets (PC32A)

Reference : LLD.WR126

Availability:

Sign up

Professionnals, please contact us
Cooling method : by natural convection
Control : DMX512 or 8 external panel keys
Protection : DPN 16A circuit breaker
Output : on terminal block (optional on CE 32A 2P+T sockets)
Each dimmer output can be limited between 110 and 245V
Automatic compensation of the supply voltage
Single-phase or three-phase supply
Choice of dimmer response time : 20, 80 or 160ms
Four preinstalled curves + custom curves : Linear, S-curve, Extraction, Square and user defined curves
Memories : 20 memories controlled with manual or automatic mode
Dimensions : 82x82x15cm
Net weight : 48kg
