Microphone and receiver WMSH208

Receiver WMSH208

Frequency range: 600 – 900 MHz
Max channel number: 208
Switching bandwidth: 25 MHz
Sensitivity: -102 dBm
Signal-to-noise ratio: >105 dB(A)
THD: <0.8%
Audio output level: 8 dBu max
Dimensions: 212 mm x 160 mm x 44 mm (8.34 x 6.30 x 1.73 inches)
Weight: 900 g (1.98 lb)
Power supply: 12-18 V continu 500 mA

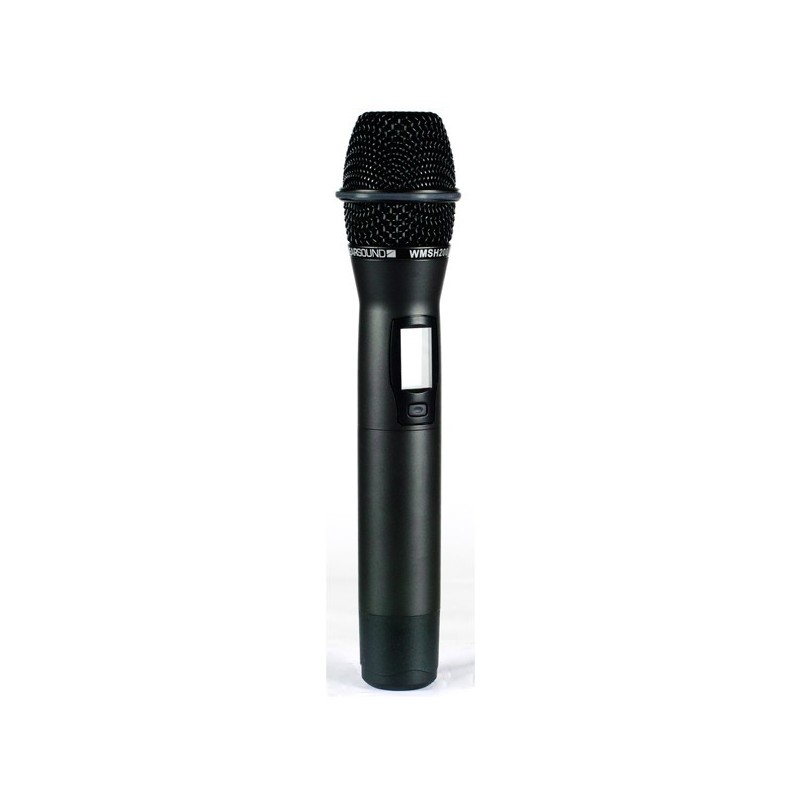

Handheld transmitter WMSH208

Frequency range: 600 – 900 MHz
Switching bandwidth: 25 MHz
Spurious rejection: >55 dBc
Peak deviation: ± 55 KHz
Frequency response: 60 Hz – 18 KHz
Signal-to-noise ratio: >102 dB(A)
THD: <0.5%
Dimensions: 246 mm x 53 mm (9.7 x 2 inches)
Weight: 250 g (0.55 lb)
Power supply: 2 piles AA alcaline ou rechargeable
Operating time: > 8 h (alcaline)
